OmniCure AC8 UV LED Large-Area Curing Systems

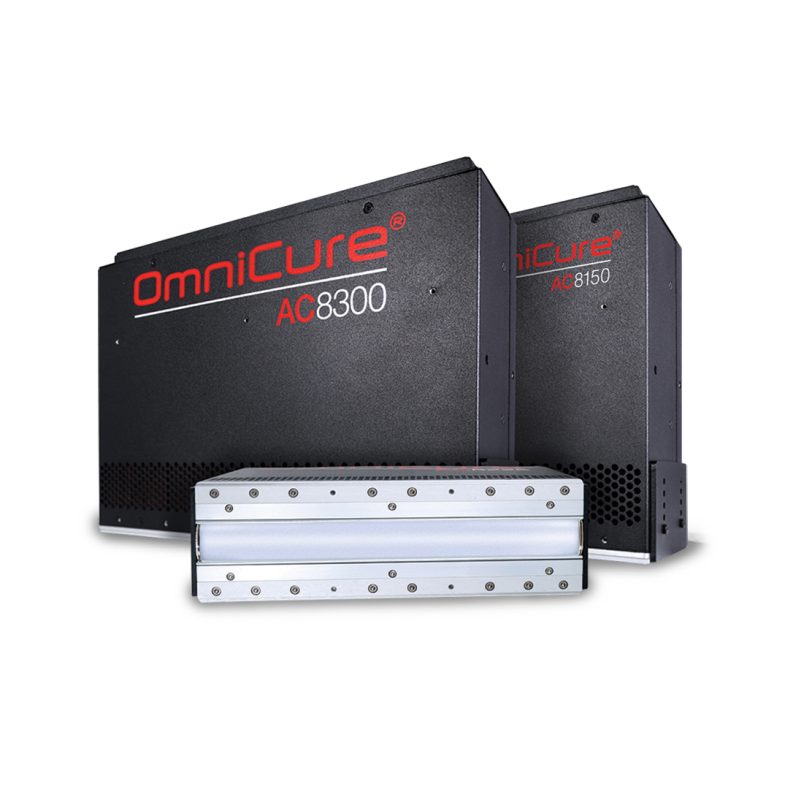

OmniCure® AC8 Series of air-cooled UV LED curing systems are designed to deliver over 8 W/cm2 peak irradiance with exceptional uniformity for even curing. The AC8150/P, AC8225/P and AC8300/P UV curing systems provide high longitudinal uniformity over the entire 150 mm (6″) to 300 mm (12″) curing area for consistent and repeatable results of all parts. The “P” versions of the AC8 Series have enhanced optics to optimize the dose for short working distances required by print applications.

contact us

The OmniCure AC8 Series utilizes a patented process for addressing individual UV LED module outputs, and providing exceptional uniformity over the entire curing area. Multiple UV LED heads can be adjoined while maintaining optical uniformity between each system. The flexibility to achieve larger curing areas in a variety of customizable lengths enables manufacturers to improve throughput without compromising on performance.



AC8150

AC8225

AC8300

LED Peak Wavelengths

365 nm ± 5 nm, 395 nm ± 5 nm

Active Optical Area

150 x 25 mm

225 x 25 mm

300 x 25 mm

Power Consumption*

956 W

1430 W

1904 W

Typical Peak Irradiance (W/cm2)

365 nm

395 nm

365 nm

395 nm

365 nm

395 nm





Working Distance

1 mm

8.0

8.5

8.0

8.5

8.0

8.5

10 mm

6.0

6.2

6.0

6.2

6.0

6.2

20 mm

4.2

4.5

4.2

4.5

4.2

4.5

30 mm

2.9

3.8

2.9

3.8

2.9

3.8

40 mm

2.0

3.0

2.0

3.0

2.0

3.0

50 mm

1.5

2.5

1.5

2.5

1.5

2.5

Optical Power*

260 W

273 W

390 W

410W

520 W

547 W

Longitudinal Uniformity*

Better than ±10%

Operating Voltage

48 V DC ± 2 V

Dimensions (L x W x H)

159 x 80 x 218 mm

235 x 80 x 218 mm

311 x 80 x 218 mm

Weight (kg)

3.6

2.5

4.4

2.7

5.2

2.9

Cooling

Air

Life Expectancy

> 20,000 hours

Automation

Integrated PLC controls for UV intensity and system alarms

LED Warranty

2 years or 10,000 service hours
  • Output of over 8 W/cm2: High speed curing for inks, adhesives and coatings
  • Custom front-end optics: High powered, high peak irradiance and exceptional uniformity at different working distances
  • Patented individual LED module output: Ensure superior uniformity over the entire curing area
  • Adjoining system modules: Obtain +/- 10% uniformity between heads for even and consistent curing over the curing area
  • Available in 395 nm and 365 nm: Select the optimum wavelength to best suit specific applications
  • Air-cooled design: Easily integrate into any workstation with no additional venting, ozone extraction or chillers required
  • Highly-efficient LED modules: Save costs from reduced power consumption compared to arc lamp systems
  • Compact size: Easily integrate into new or existing production lines
  • 20,000 hour typical lifetime: Reduced running costs from compared to arc lamp solutions
  • Enhanced optics specifically for print applications (“P” versions): Adapts output to maximize output for the process requirements of printing industry
  • Narrow wavelength output of LED: Increased yields of parts due to lower temperature curing compared to arc lamp systems
