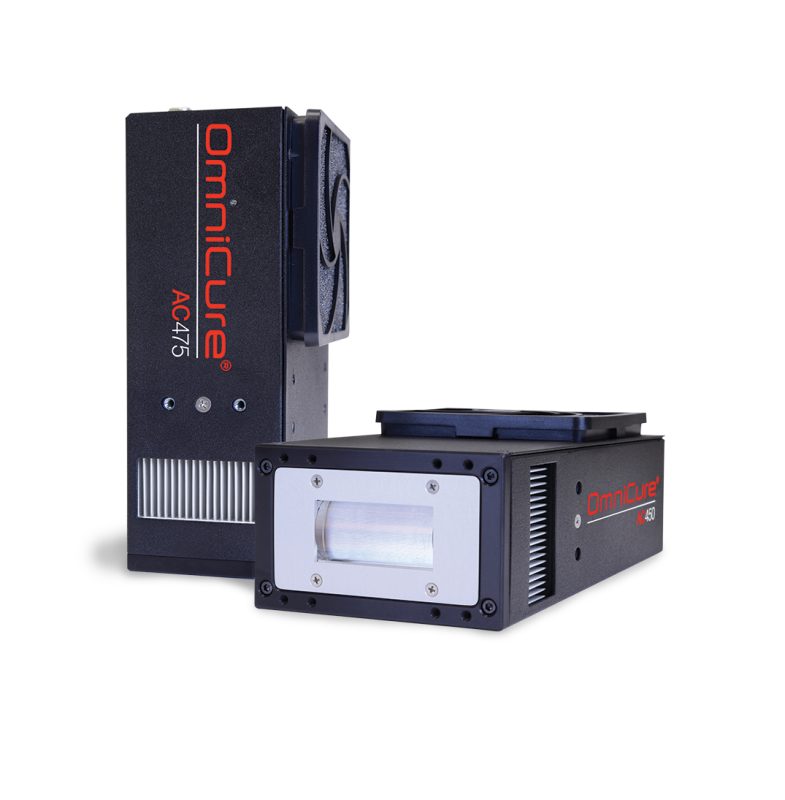

OmniCure AC4 UV LED Small-Area Curing System

OmniCure® AC4 Series of air-cooled UV LED curing systems are designed with high output LEDs and custom optics to deliver high irradiance of over 8 W/cm2 with exceptional uniformity at long working distances. Consisting of the OmniCure AC450, AC450P, AC475, AC475P, our AC4 Series utilizes our patented process for individually addressing each LED UV module output to provide consistent results by ensuring high longitudinal uniformity over the entire 50 mm (2″) to 75 mm (3″) curing area. A uniform exposure area allows for curing of larger and/or multiple parts simultaneously enabling manufacturers to achieve highest productivity and reduced running costs.

contact us

The AC4 Series offers precise control of the UV irradiance level and time to ensure that the correct dose of UV energy at the required wavelength is provided on every exposure for a repeatable curing process. Intelligent system monitoring and control ensures system reliability meets the demands for any application.

AC450

AC475

Active Optical Area

50 x 25 mm

75 x 25 mm

LED Peak Wavelengths

365 nm ± 5 nm, 395 nm ± 5 nm

Typical Peak Irradiance (W/cm2)

365 nm

395 nm

365 nm

395 nm

Working Distance

1 mm

8.0

8.2

8.0

8.2

10 mm

6.0

6.2

6.0

6.2

20 mm

4.2

4.5

4.2

4.5

30 mm

2.9

3.2

2.9

3.2

40 mm

2.0

3.2

2.0

3.2

50 mm

1.5

1.7

1.5

1.7

Optical Power*

87 W

90 W

130 W

135 W

Power Consumption*

330 W

480 W

Longitudinal Uniformity*

Better than ± 10%

Operating Voltage

48 V DC ± 2 V

Dimensions (L x W x H)

110 x 68 x 190 mm

Weight

1.1 kg (2.4 lbs)

Cooling

Air

Acoustic Noise

< 65 dBA, load adapting

Life Expectancy

> 20,000 hours

Automation

Integrated PLC controls for UV intensity and system alarms

LED Warranty

2 years or 10,000 service hours
  • Output of over 8 W/cm2: High speed curing for adhesives, coatings and inks
  • Custom front-end optics: Greater flexibility in the curing process via high peak irradiance available at longer working distances
  • Patented process for addressing individual LED modules: Ensure superior uniformity across the full LED area
  • Available in 395 nm and 365 nm: Ability to select the optimum wavelength for specific adhesives, coatings or inks and also the substrates to best suit the application
  • Air-cooled design: Easily integrate into any workstation with no additional venting, ozone extraction or chillers required
  • I/O Port for remote operation: Ability to automate for increased productivity
  • Highly-efficient LED modules: Costs savings from reduced power consumption compared to arc-lamp systems
  • Compact size: Easily integrated into any workstation
  • 20,000 hour typical lifetime: Reduced running costs when compared to arc-lamp solutions
  • Narrow wavelength output of LED: Increased yields of parts due to lower temperature curing compared to arc lamp systems
