Advanced Intelligent Monitoring System (AIMS)

The Advanced Intelligent Monitoring System (AIMS®) allows manufacturers to monitor the performance of their smart UV curing systems in real-time and embrace Industry 4.0. Designed for use with our LightHammer® Mark II and Mark III Smart UV curing systems, AIMS helps minimize downtime and reduce the total cost of ownership.

contact us

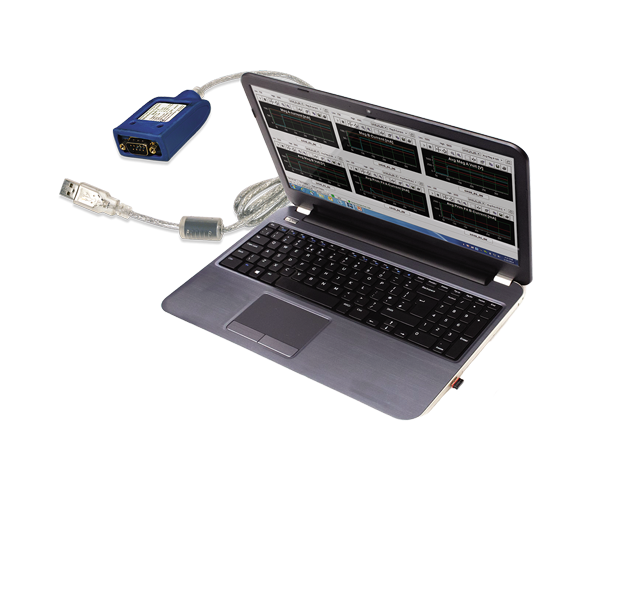

The AIMS software application enables real-time monitoring and data acquisition of critical operating parameters for the LightHammer UV curing system being monitored. With the AIMS software, operators and process engineers can access and view operating data on a PC in real-time through various dashboard formats. The system is capable of sending alerts and notifications via email. Additionally, operators and maintenance personnel can track maintenance schedules for consumable parts to help enhance maintenance planning. AIMS can monitor up to 30 LightHammer 10 Mark II and Mark III UV curing systems simultaneously.

AIMS Real-time Performance Monitoring for Microwave UV Curing Systems Brochure

  • Monitor production in real-time for improved product quality and production rates.
  • Easily monitor up to 13 Primary irradiators when operating in Primary/Secondary and up to 30 power supplies with user-friendly and flexible software.
  • Track 24 – 36 different system metrics including magnetron current and voltage, photocell voltage and more at 15, 30 or 60 second intervals.
  • Display up to six user-selectable metrics simultaneously in graph, gauge, or summary formats on screen.
  • Set email alerts when warnings/faults occur along with periodic email system summary reports.
  • Gain remote access and compare data across multiple plants to enhance operations, dependant on your IT infrastructure
  • Enhance preventive maintenance with proactive alerts and notifications as well as tracking operating hours of key components – magnetron, bulbs, and reflectors – to minimize downtime and scrap rates thus, reducing total cost of ownership
  • Adhesive bonding
  • Automotive components
  • Converting web coatings
  • Metal decorating and coating
  • Glass decorating
  • Medical device marking and coating
  • Electronic components
  • Plastic decorating
  • Optical fiber coating
