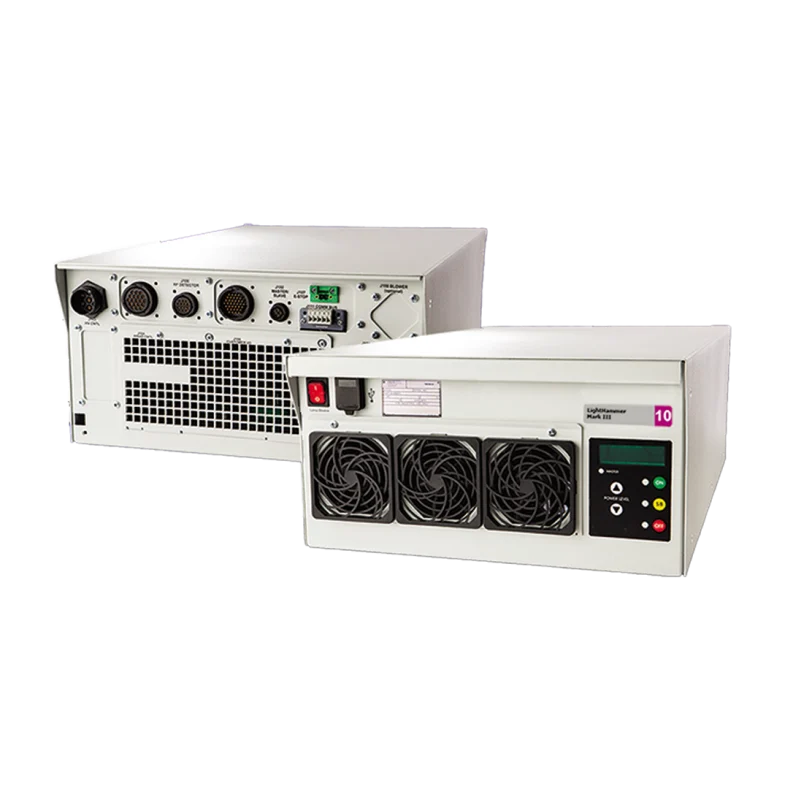

LightHammer 10 Mark III UV Curing System

The Fusion UV LightHammer® 10 MARK III is a smart IoT ready, microwave-powered UV curing system with a 10 inch irradiator and 240 W/cm (600 W/in) power class.

contact us

The LightHammer 10 Mark III is the most advanced smart microwave-powered UV curing system. With sensors in both the irradiator and the solid-state power supply, it is IoT-enabled for today’s Digitization Roadmap. By monitoring real-time system performance, users can minimize downtime and optimize processes while reducing operating costs. Systems can be combined to increase curing width or around complex parts.

  • Smart Power Supply – flexible control scheme via software, reduced operating costs, smaller and lighter weight
  • Intelligent Irradiator – sensors inside the UV lamp module measure 8 operating parameters, use real-time data monitoring to increase up-times and lower total cost of ownership
  • Irradiator footprint – W: 419mm, L: 777mm, H: 217mm (with the connector included)
  • Lamp bulb length – 25 cm, available in D, H, and V spectra
  • Power class – 240 W/cm (600 W/in)
  • Variable power capability (35% to 100%), fast restarting
  • Provides accurate, real-time data to reduce total cost of ownership, increase equipment and production up-times, increase operational intelligence, and improve system efficiency and reliability.
  • System parameters can be monitored via the optional Advanced Intelligent Monitoring System (AIMS®) software or your own software.
  • Data can be used for system performance monitoring, system diagnostics and predictive maintenance, and much more.
  • The intelligent Irradiator offers the same form and fit of existing LHI10 Mark II irradiators and can be a direct replacement for an existing Mark II irradiator.
  • Adhesive bonding
  • Automotive components
  • Metal decorating and coating
  • Glass decorating
  • Medical device marking and coating
  • Electronic components
  • Plastic decorating
