OmniCure AC9225-F Series UV LED Curing Systems for Fiber Cure Applications

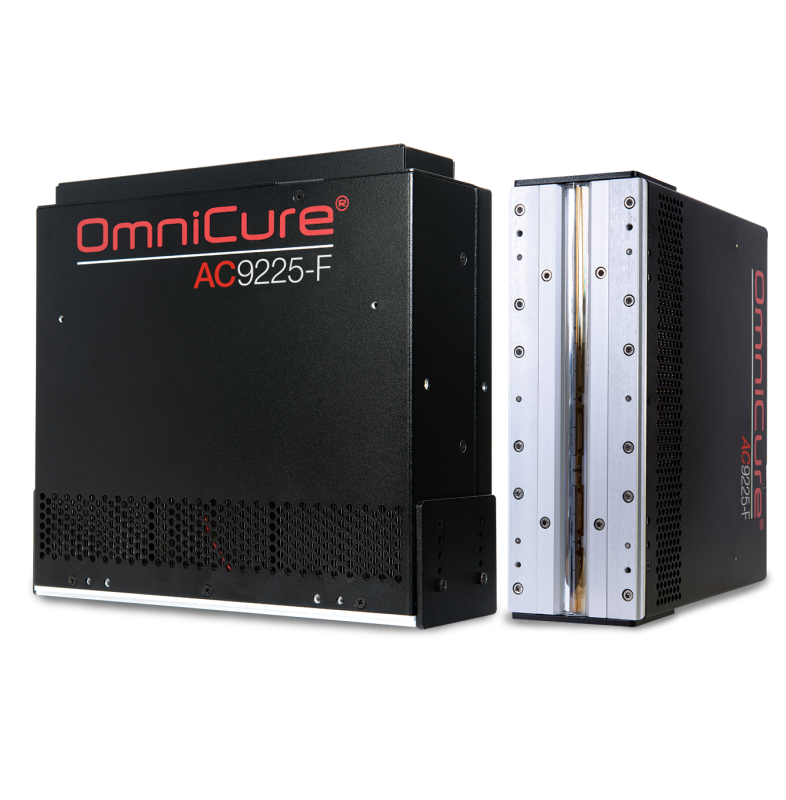

Featuring an innovative optical design to enhance output and optimize delivery of UV onto the fiber, AC9225-F UV LED curing systems are specifically designed for fiber curing applications. With up to 80 W/cm2 irradiance on the fiber in the standard face to face configuration, the OmniCure AC9225-F provides an air-cooled, high output solution to meet the increasing demand for faster process speeds. The replaceable outer window simplifies maintenance to provide optimum uptime. The scalable OmniCure AC9225-F system easily meets the most demanding fiber curing requirements without the need for complex changes in integration. Choose from two AC9225F-395 models depending on your system control and communication requirements.

contact us

OmniCure AC9225-F UV LED fiber curing systems reduce electrical power consumption by up to 60% compared with traditional arc lamp systems for exceptional cost savings and no compromises in line speed. With over 40,000 hours of LED lifetime and no replacement parts, maintenance costs are even further reduced.

See Related Content below to read our Application Note on UV LED Curing of Optic Coating Materials.

AC9225-F

Peak Wavelengths

 395 nm +/- 5 nm

Active Optical Area

 225 x 15 mm

Typical Power Consumption*

 900 W

Typical Peak Irradiance (W/cm2)





Working Distance

10 mm

 21.8

13 mm

 21.4

15 mm

 20.7

18 mm

 19.7

Longitudinal Uniformity*

 Better than +/- 10%

Operating Voltage

 48 V DC +/- 2 V

Dimensions (L x W x H)

 235 x 80 x 220 mm

Weight (kg)

 2.7

Cooling

 Air

Life Expectancy (L70)

 >40,000 hours

Automation

 Integrated PLC controls

LED Warranty

 3 years or 20,000 service hours
