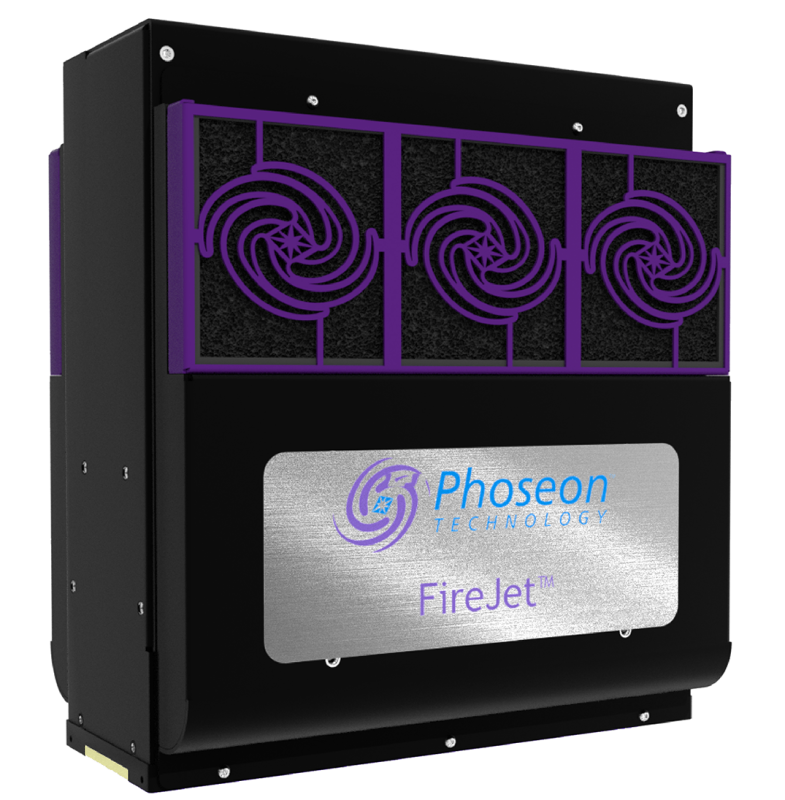

Phoseon FireJet FJ240 UV LED Large-Area Curing System

The Phoseon™ FireJet FJ240 UV LED Large-Area Curing System is an excellent choice for applications where maximum dosing and dwell time are crucial for effective scanning cures due to its broad exposure window. This system features advanced technologies such as WhisperCure™ and TargetCure™, which ensure reliable and consistent performance while operating quietly.

contact us

Phoseon FireJet FJ240 UV LED system is a high-performance, air-cooled curing solution designed for printing and coating applications that require significant UV doses. It delivers more UV power than FireJet One or FireJet FJ100 products making it ideal for area cure applications demanding the highest curing performance. The system comes in window lengths of 75, 150, 225, 300, and 375 mm, with a width of 40 mm and a peak irradiance of up to 16 W/cm². The FireJet FJ240 provides high UV radiant power in an air-cooled format, resulting in increased production and higher yields. Furthermore, the FireJet family of products is scalable to accommodate various curing lengths, ensuring easy installation and low maintenance. These products are available with Modbus TCP protocols for high-speed data exchange and remote access.


Wavelength 365 nm
Peak Irradiance 8W/cm2
Emitting Window (mm) 75×40 150×40 225×40 300×40 375×40
UV Power (Watts)

200

400

600

800

1000
48V Power In (Max)

720W

15A

1440W

30A

2160W

45A

2880W

60A

3600W

75A




Wavelength 385, 395, 405 nm
Peak Irradiance 12W/cm2  16W/cm2
Emitting Window (mm) 75×40 150×40 225×40 300×40 375×40 75×40 150×40 225×40 300×40 375×40
UV Power (Watts)

300

600

900

1200

1500

400

800

1200

1600

2000
48V Power In (Max)

768W

16A

1536W

32A

2304W

48A

3072W

64A

3840W

80A

1008W

21A

2016W

42A

3024W

63A

4032W

84A

5040W

105A
  • Peak Irradiance: 12 or 16 W/cm² at 385, 395, 405 nm
  • Peak Irradiance: 8 W/cm² at 365 nm
  • Unique wide emitting window delivers high dose for optimal curing results
  • Patented TargetCure technology for precise and predictable UV output
  • Patented WhisperCure technology offers a quieter operation
  • Scalable architecture to enable custom lengths
  • Digital/analog control for ease of use
  • Available with Modbus TCP communication protocol for high-speed data exchange and remote access
  • Digital inkjet printing
  • Wood coatings
