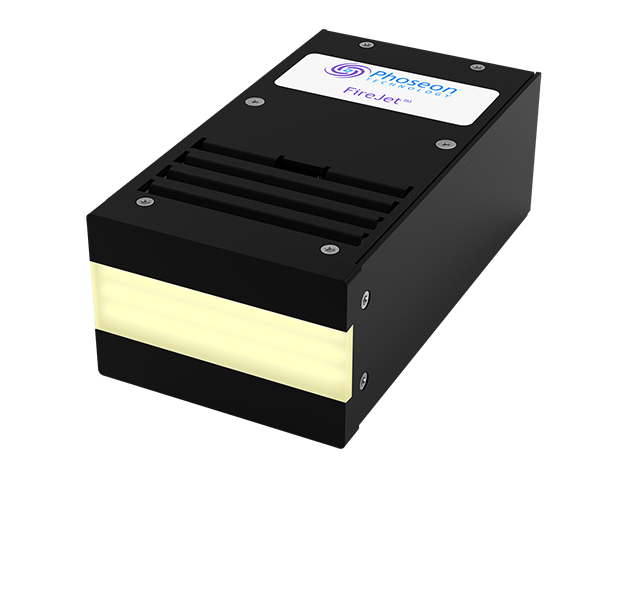

Phoseon FireJet FJ100 UV LED Large-Area Curing System

The Phoseon™ FireJet FJ100 Gen2 features a compact design and offers end-to-end scalability, making it a perfect solution for a variety of printing and coating applications. This fully self-contained unit comes with five different window lengths to facilitate easy integration. The lamps can be controlled using PLC signals, allowing for instant on/off functionality, intensity control, and other primary functions, or digital control for more advanced status and control.

contact us

The FireJet FJ100 air-cooled UV LED curing system provides an ideal combination of size and power for space-constrained environments requiring high-intensity curing performance. With WhisperCure™ and TargetCure™ technologies, the FJ100 delivers reliable, consistent performance at a quiet operating level. The FireJet FJ100 is ideal for UV inkjet applications and other applications requiring curing of coatings. These products are available with Modbus TCP protocols for high-speed data exchange and remote access


Wavelength 385, 395, 405 nm
Peak Irradiance 16W/cm2  12W/cm2
Emitting Window (mm) 75×20 150×20 225×20 300×20 375×20 75×20 150×20 225×20 300×20 375×20
Maximum Fan Capacity 50 CFM 100 CFM 150 CFM 200 CFM 250 CFM 50 CFM 100 CFM 150 CFM 200 CFM 250 CFM
48V Power In (Max)

576W

12A

1104W

23A

1632W

34A

2160W

45A

2640W

55A

432W

9A

816W

17A

1200W

25A

1584W

33A

1968W

41A
DC Connector Type 2W2 2W2 2W2 5W5 8W8 2W2 2W2 2W2 2W2 8W8

Wavelength 365 nm 385, 395, 405 nm
Peak Irradiance 8W/cm2
Emitting Window (mm) 75×20 150×20 225×20 300×20 375×20 75×20 150×20 225×20 300×20 375×20
Maximum Fan Capacity 50 CFM 100 CFM 150 CFM 200 CFM 250 CFM 50 CFM 100 CFM 150 CFM 200 CFM 250 CFM
48V Power In (Max)

288W

6A

720W

15A

960W

20A

1296W

27A

1632W

34A

240W

5A

480W

10A

672W

14A

912W

19A

1152W

24A
DC Connector Type 2W2 2W2 2W2 2W2 8W8 2W2 2W2 2W2 2W2 8W8
  • Patented TargetCure technology for precise and predictable UV output
  • Patented WhisperCure technology offers a quieter operation
  • Scalable architecture to enable custom lengths
  • High irradiance for high performance applications
  • Digital/analog control for ease of use
  • Available with Modbus TCP communication protocol for high-speed data exchange and remote access
  • Digital inkjet printing
  • Adhesives
  • Wood coatings
