LightHammer 6 MARK II UV Curing System

The Fusion UV LightHammer® 6 MARK II is a smart microwave-powered UV curing system with a 150 mm (6 inch) irradiator and 200 W/cm (500 W/inch) power class.

contact us

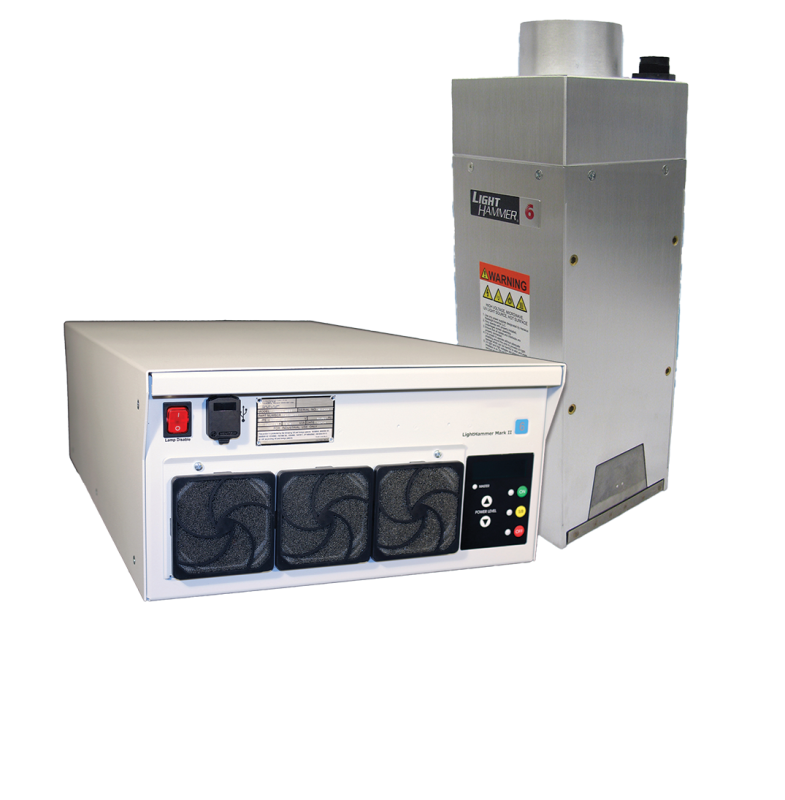

The LightHammer 6 MARK II includes an irradiator (modular lamp), electrodeless UV bulb, and a solid-state power supply as well as either an internal or external cooling blower. This 6-inch UV curing system offers a more flexible control scheme via software, reduced operating costs, smaller and lighter weight for easy integration, and reduced unscheduled downtime. The LightHammer 6 MARK is ideal for UV curing applications requiring process flexibility, consistency and maximum uptime. Modular systems can be combined to cure across wider widths or around complex shaped surfaces.

  • Smart power supply – flexible control scheme via software, reduced operating costs, smaller and lighter weight
  • Lamp bulb length – 15 cm, available in D, H, and V spectra
  • Power class – 200 W/cm (500 W/in)
  • Irradiator footprint (W x L) – 168 x 168 mm
  • Variable power capability (35% to 100%), fast on/off cycles
  • Simplicity and flexibility in the control scheme – Via software versus traditional hardware
  • Ease of integration, high compatibility – Backward compatible with existing LH6 installations
  • Increased uptime and reliability of product – Minimize unscheduled downtime
  • Multiple communication protocols – DeviceNetTM, Profibus®, EtherNet/IPTM , Dry Contact, and “Plug & Play” options
  • Power Factor Correction – Eliminate electrical harmonics, better than 99% at full load
  • Reduced weight and better air flow – For more efficient cooling
  • Adhesive bonding
  • Automotive components
  • Metal decorating and coating
  • Glass decorating
  • Medical device marking and coating
  • Electronic components
  • Plastic decorating
