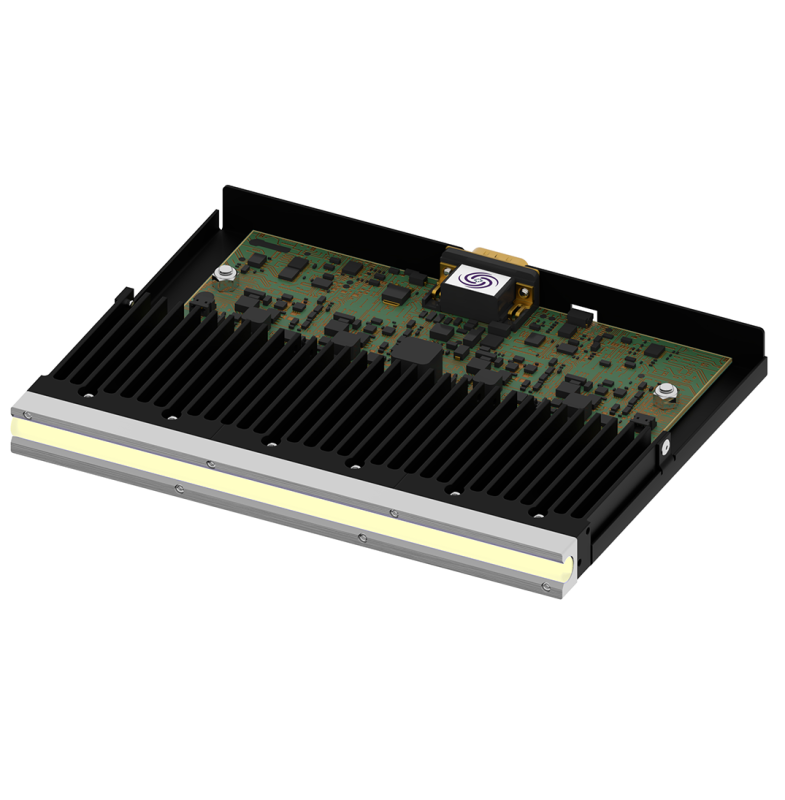

Phoseon FireEdge FE100 UV LED Small-Area Curing Systems

The FireEdge™ FE100 air-cooled UV LED curing system utilizes passive cooling through natural convection, enabling precise finish control for applications such as digital inkjet pinning and applications where space is limited. The extremely slim form factor features an emitting window of 8mm in diameter making it ideal for flat panel display edge curing. Ambient cooling eliminates the need for any external forced-air cooling system or chiller to remove heat from the UV source.

contact us

The FireEdge FE100 air-cooled UV LED curing system offers instant on/off capability and complete intensity control to ensure precise finish control for digital inkjet applications.


Wavelength 385, 395, 405 nm 365 nm
Peak Irradiance 2 W/cm2 1 W/cm2
Emitting Window (mm) 80×10 120×10 180×10 240×10 80×10 120×10 180×10 240×10
48Vdc Power In (Max) 34W / 0.7A 50W / 1.1A 75W / 1.6A 100W / 2.1A 34W / 0.7A 50W / 1.1A 75W / 1.6A 100W / 2.1A
  • Peak Irradiance: 2W/cm² at 385, 395, 405 nm
  • Peak Irradiance: 1W/cm² at 365nm
  • Patented WhisperCure technology offers a quieter operation
  • Natural convection cooling eliminates the need for an external cooling system or chiller
  • Slim form factor ideal for space constraint environments
  • Analog control for ease of use
  • Digital inkjet printing (Pinning & Full cure)
  • Adhesives
  • Coatings
